S

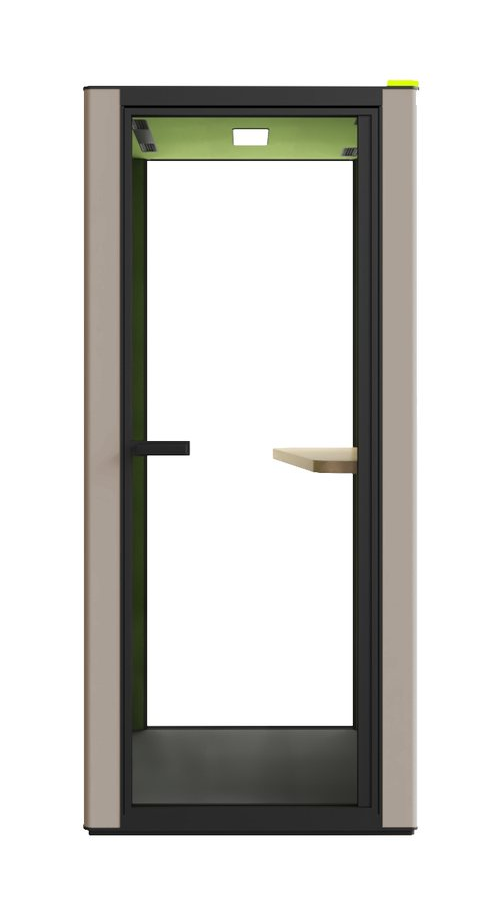

ZOOM S1
Compact acoustic cabin for one person, ideal for phone calls, focus work and private video meetings.
- 1 person
- Interior space W900 x D900 x H2120 mm
- Air exchange every 41 seconds
- 2 workers, 30 min assembly
ZOOM
Perfectly Balanced
Tranquility
Brand positioning
Privacy and focus inside open workspaces
ZOOM acoustic booths help create privacy and focus inside open workspaces. They combine acoustic insulation, fresh-air ventilation, ergonomic details and everyday comfort for calls, meetings and focused work.
Concentration
Agile Adaptability
Silence // Functionality
Efficiency // Collaboration
Productivity
SERVICE
FSC®
cULus LISTED
SGS
CE
VOC & formaldehyde free

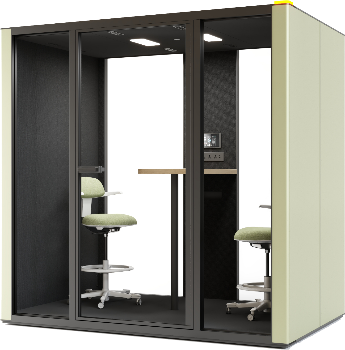

M
ZOOM M2
A two-person booth for deep work, dual video calls and quick conversations without leaving the team zone.
- 2 persons
- Internal space W2200 x D900 x H2120 mm
- Air exchange every 84 seconds
- Touch screen control
L

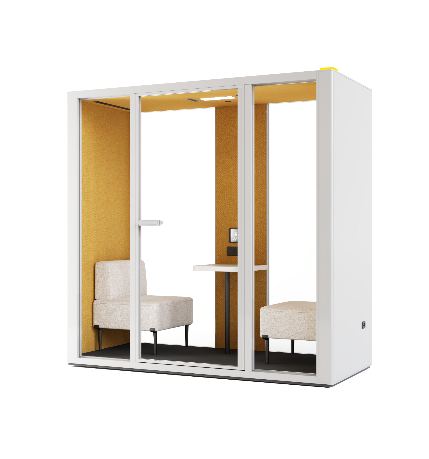

ZOOM L4
A quiet meeting room for four people, group video conferences and face-to-face co-creation.
- 4 persons
- Internal space W2200 x D1360 x H2120 mm
- Air exchange every 100 seconds
- 3 workers assemble in about 55 minutes

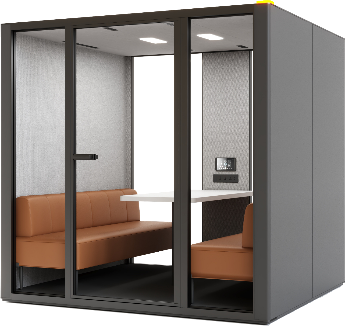

XL
ZOOM XL6
A larger acoustic room for group meetings, workshops and shared concentration inside open spaces.
- 6 persons
- Internal space W2200 x D2000 x H2120 mm
- Air exchange every 150 seconds
- Touch screen control with multi-fan airflow
Six core features for privacy and focus
30 min

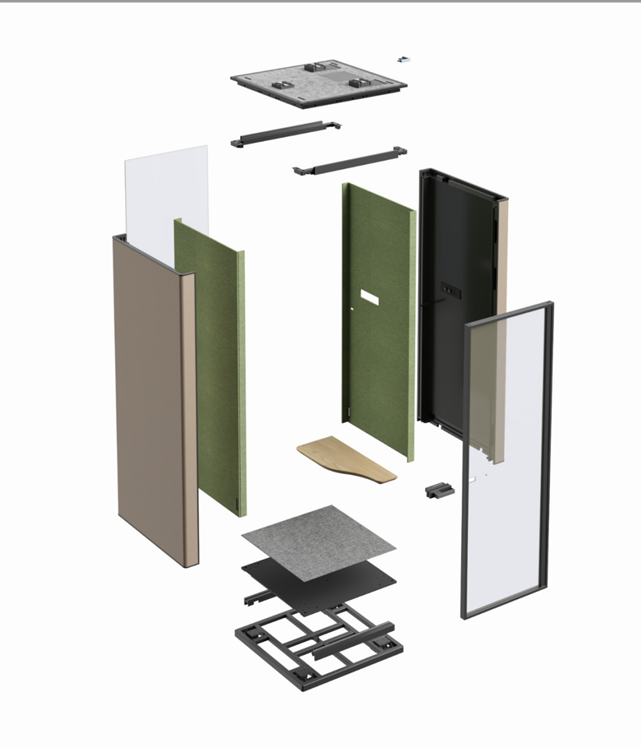

Quick assembly · 7 major modules, set up by two workers

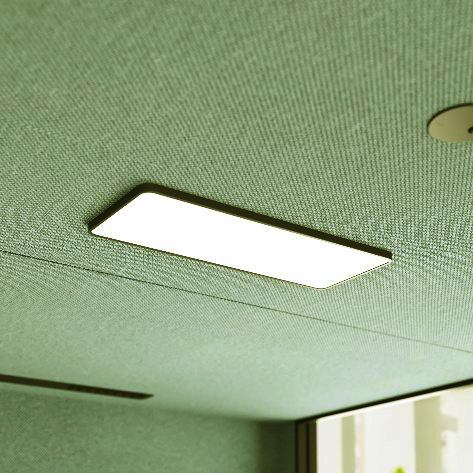

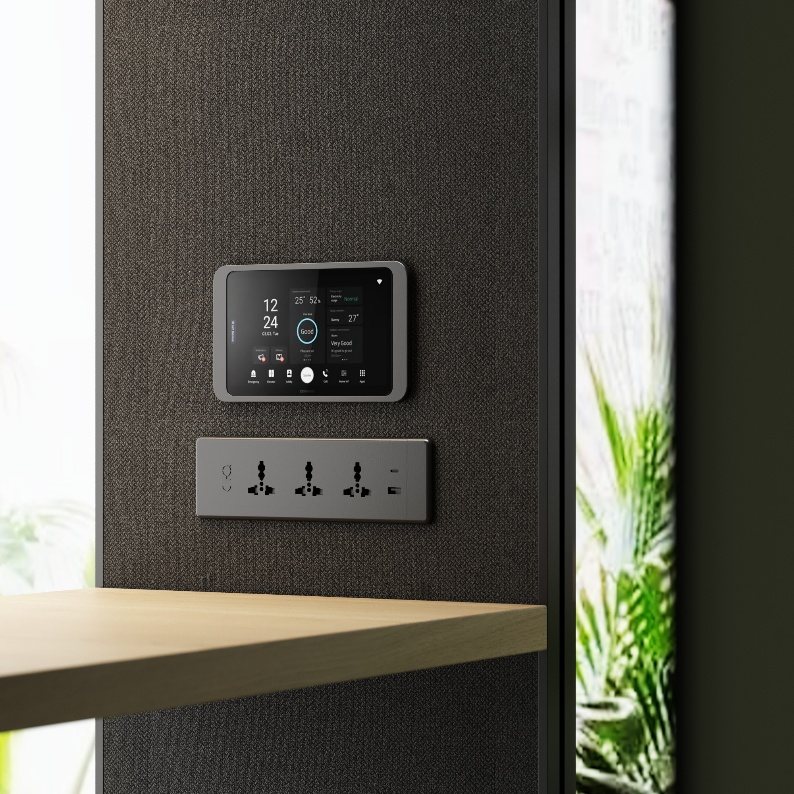

Smart
environmental
control
Customize lighting brightness, color temperature and ventilation in real time
Easy
component
replacement

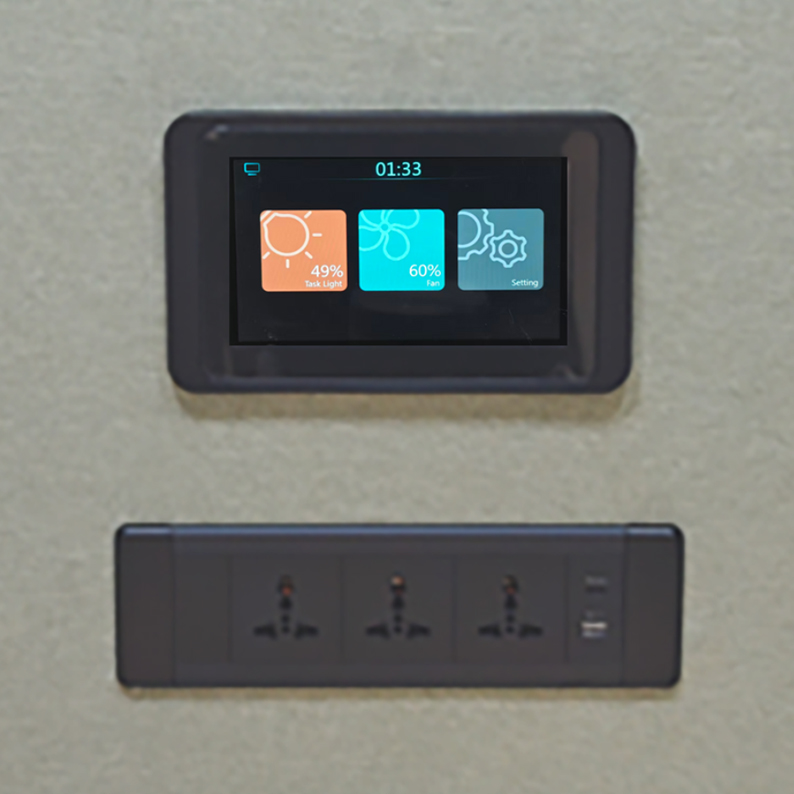

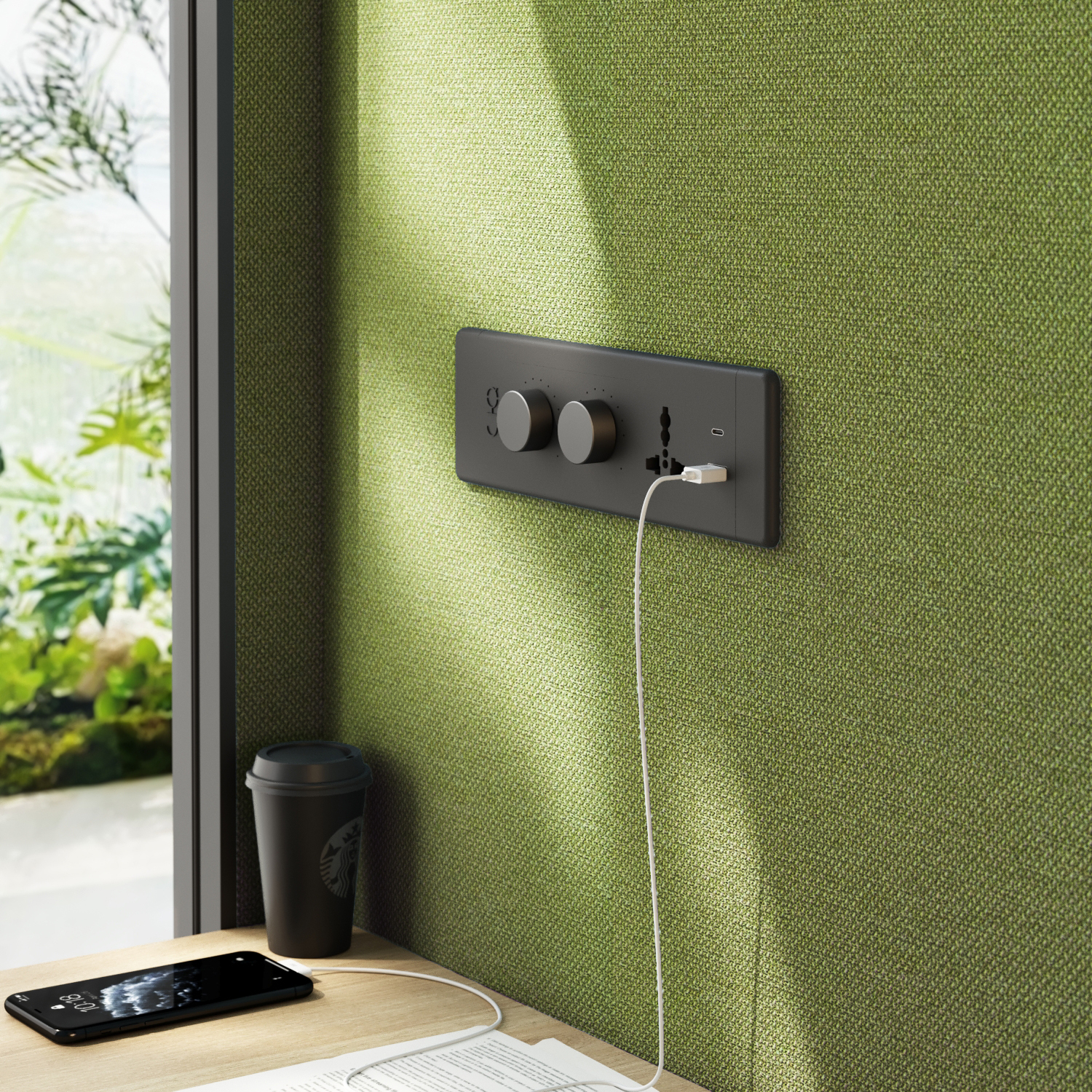

Power outlets and electronic modules can be swapped without dismantling the main structure

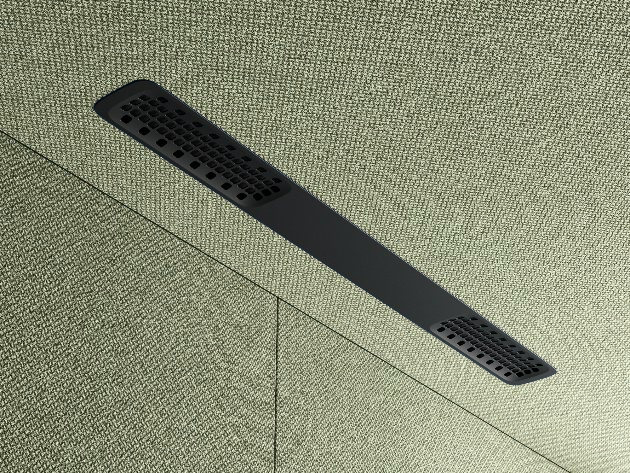

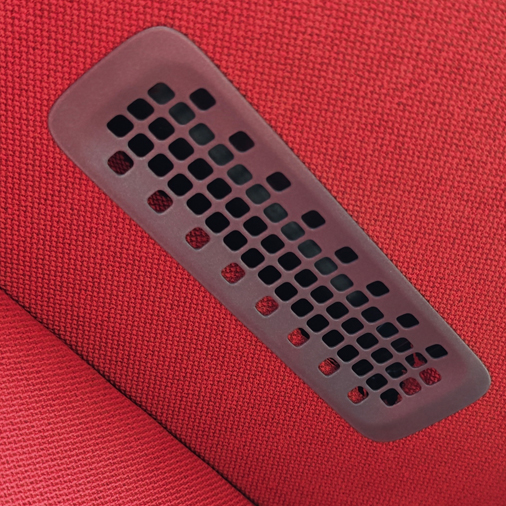

Coordinated
air circulation
Multiple fans and an extended air channel keep air constantly refreshed
FSC · SGS
CE · UL
Global certifications · compliant with international safety and environmental standards

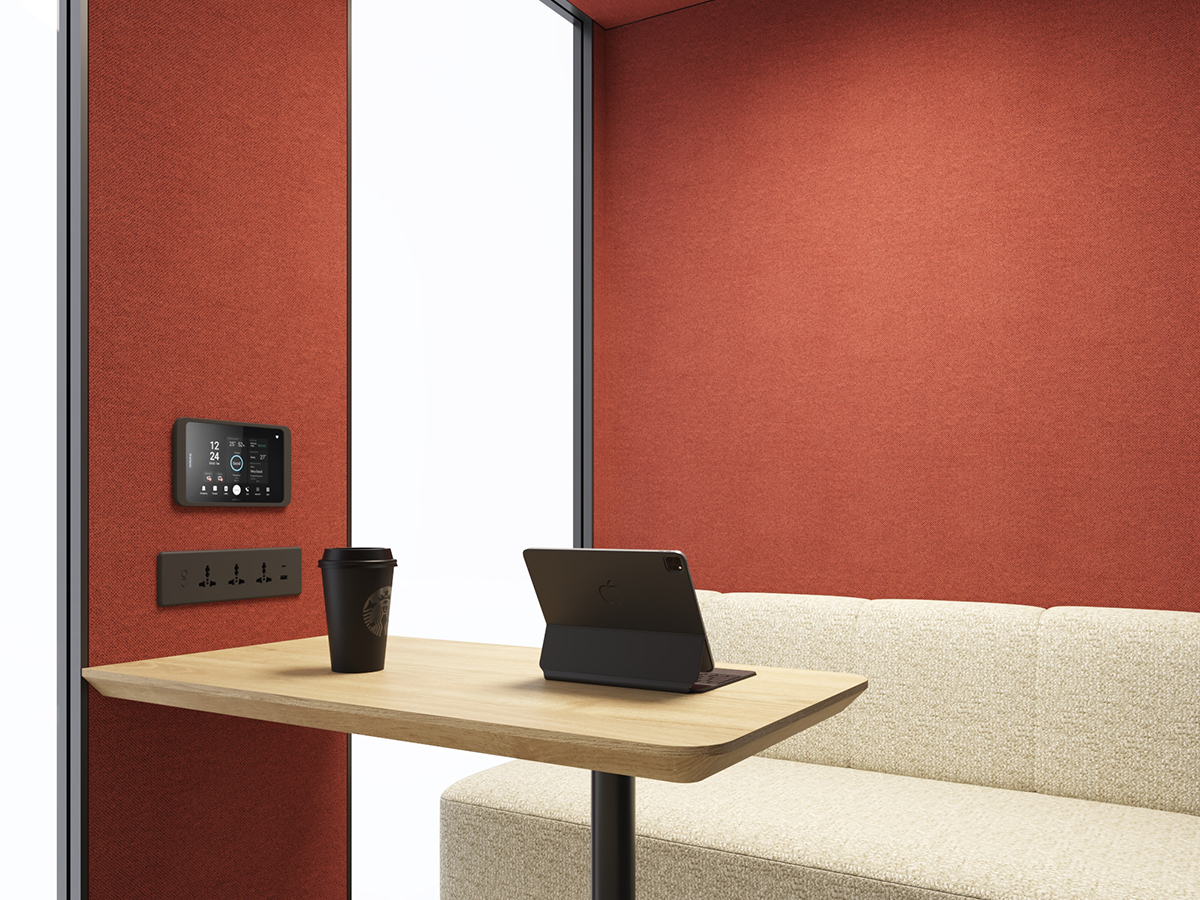

12 mm PET
Professional-grade insulation · multi-layer composite + double-sided soft upholstery
Configure your cabin
Select finishes and drag the cabin to preview the mood.
Loading 3D model
Drag to rotate
ZOOM M2 2 persons / 84 sec air exchange
Outer wallS57 Gray
Interior60109 Light Gray
CarpetLight gray
Frame / handleS57 Gray
MFC / plastic620 light wood / black
Concentration
Adaptability
Silence
Productivity
ZOOM acoustic booths help create privacy and focus inside open workspaces, combining acoustic insulation, fresh-air ventilation, ergonomic details and everyday comfort.

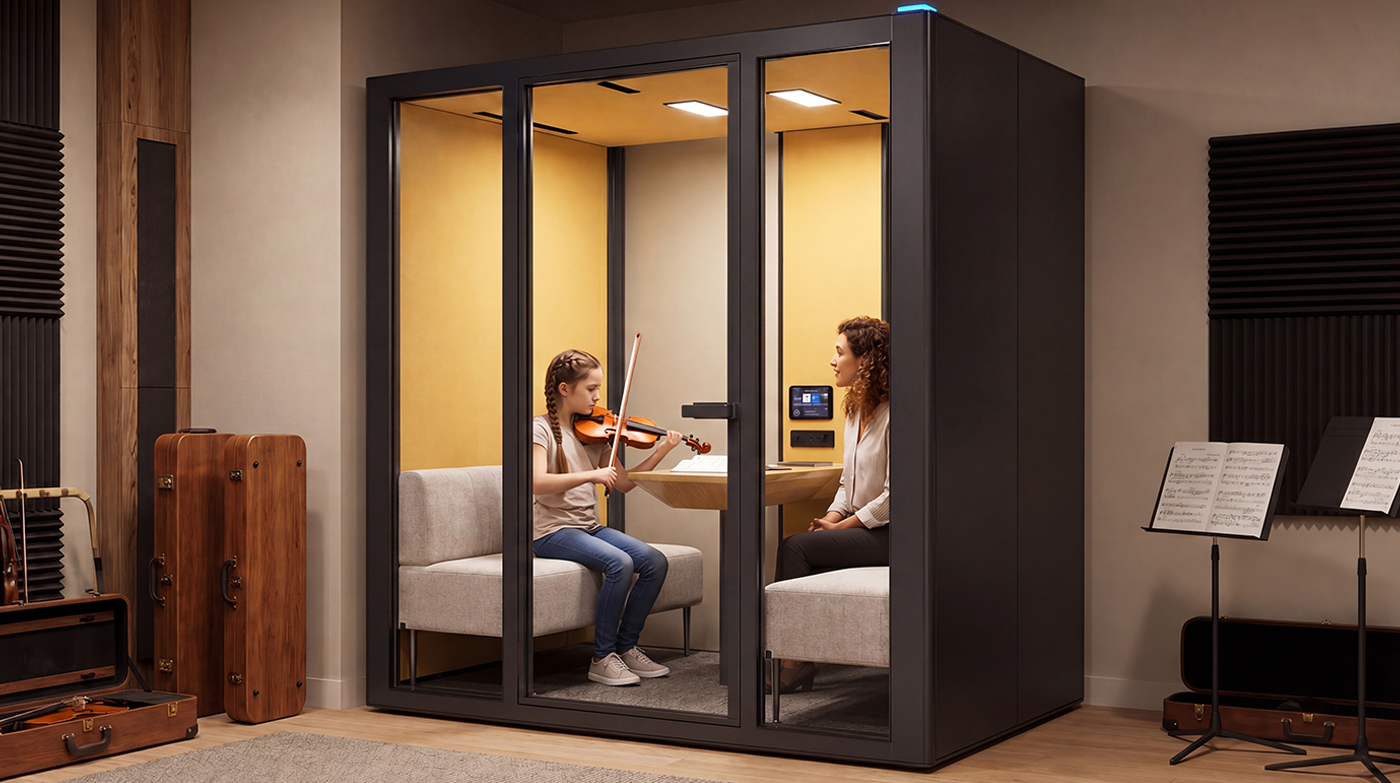

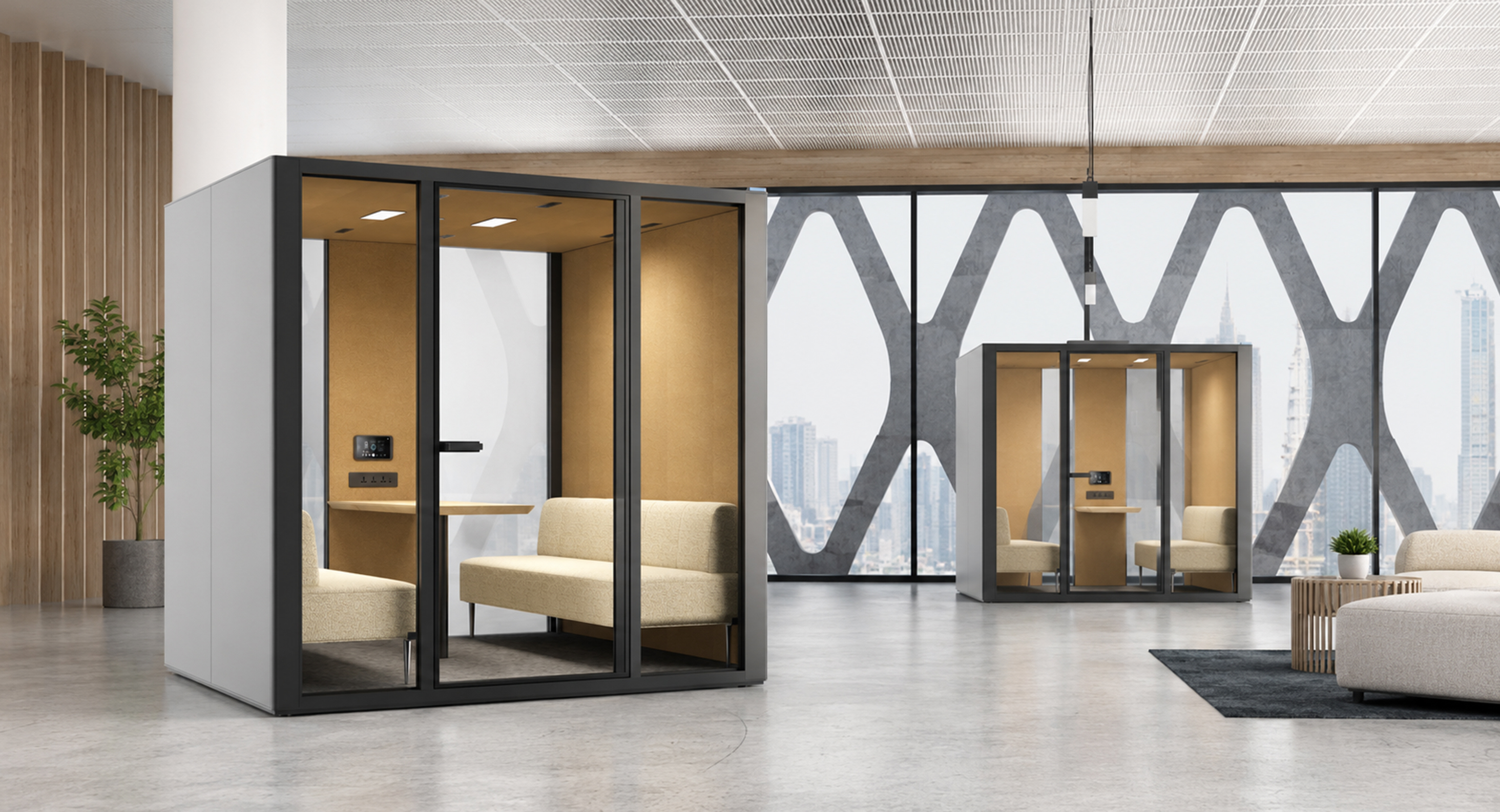

Where ZOOM fits

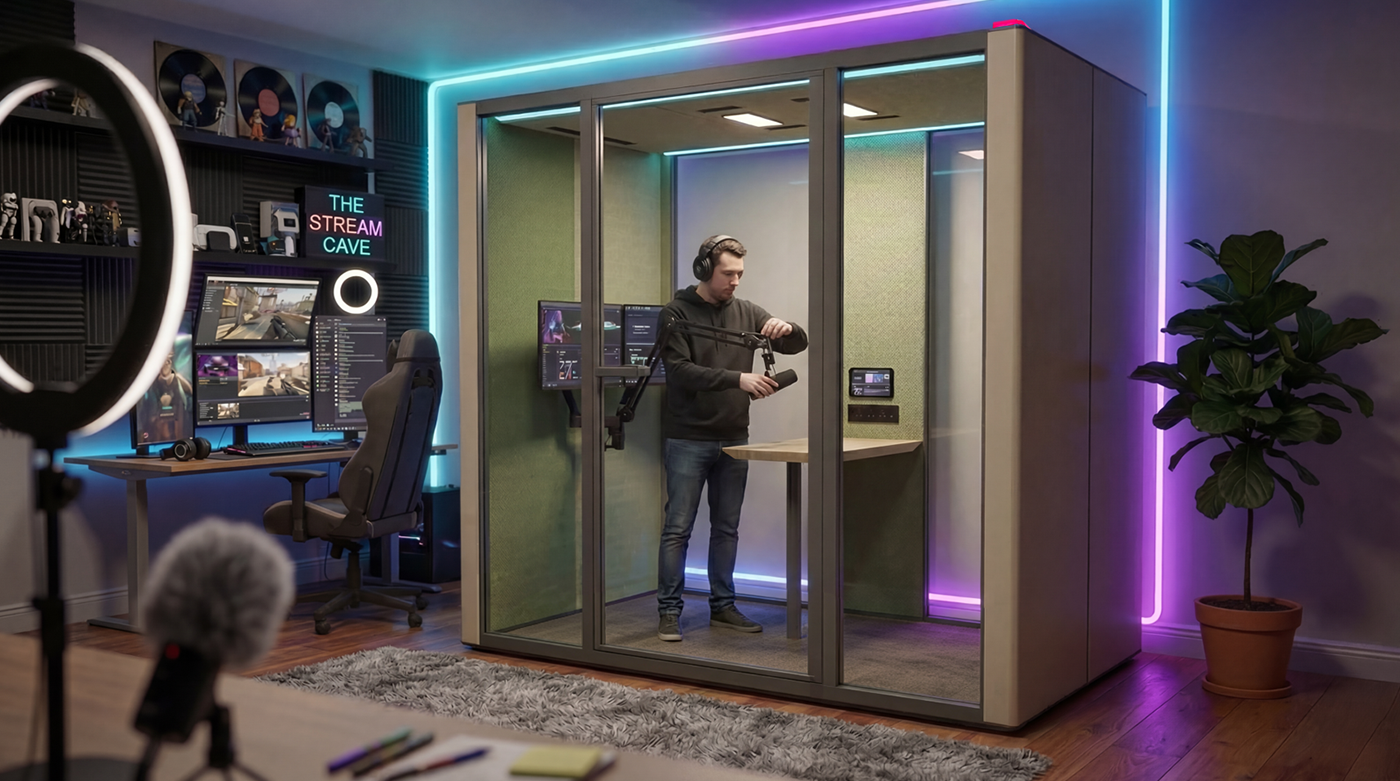

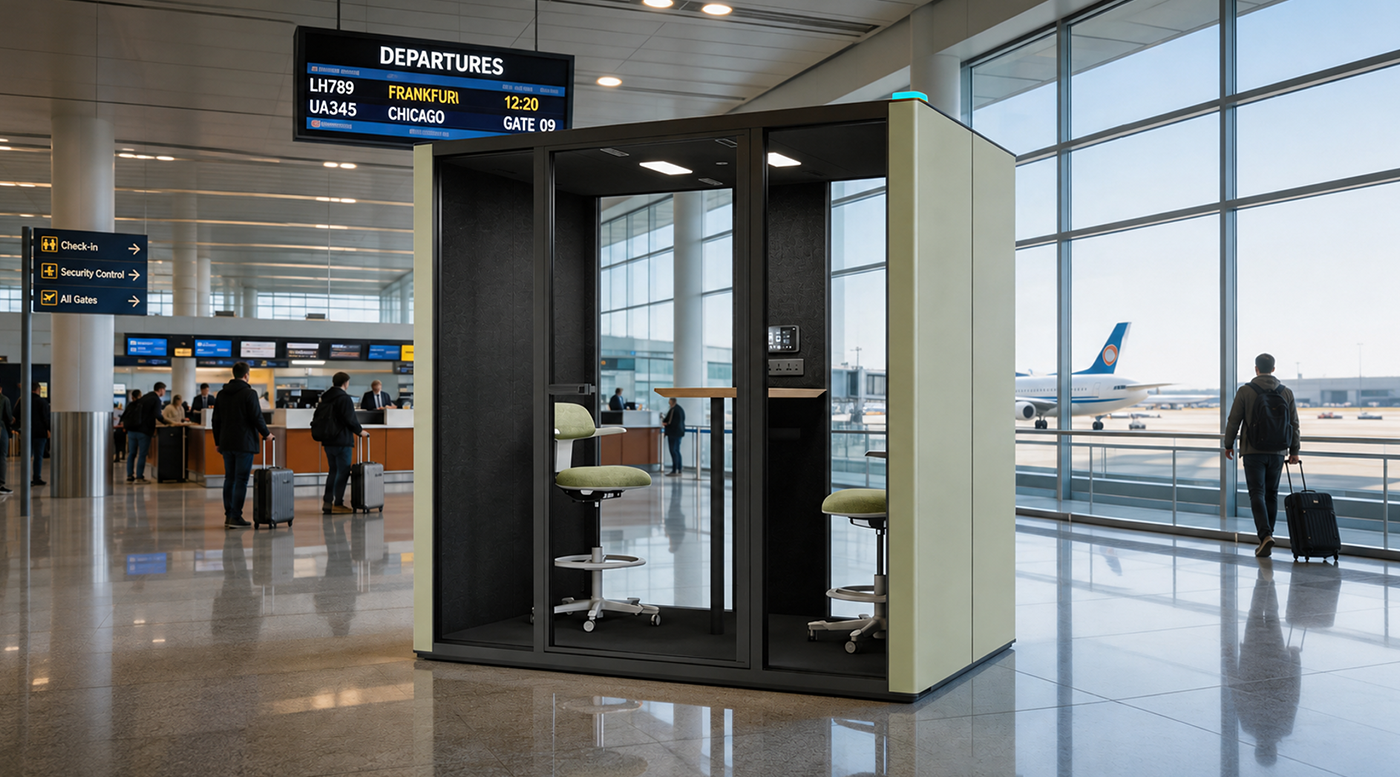

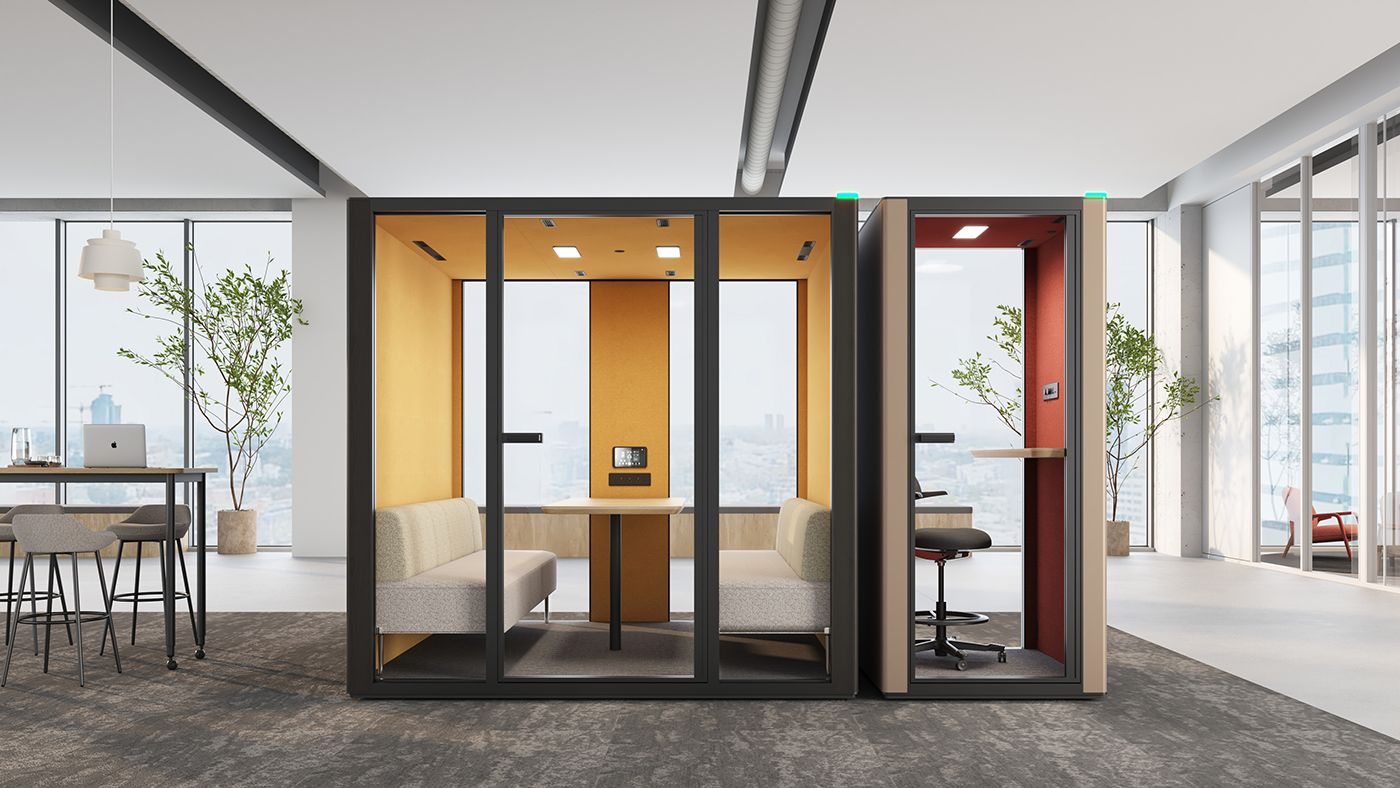

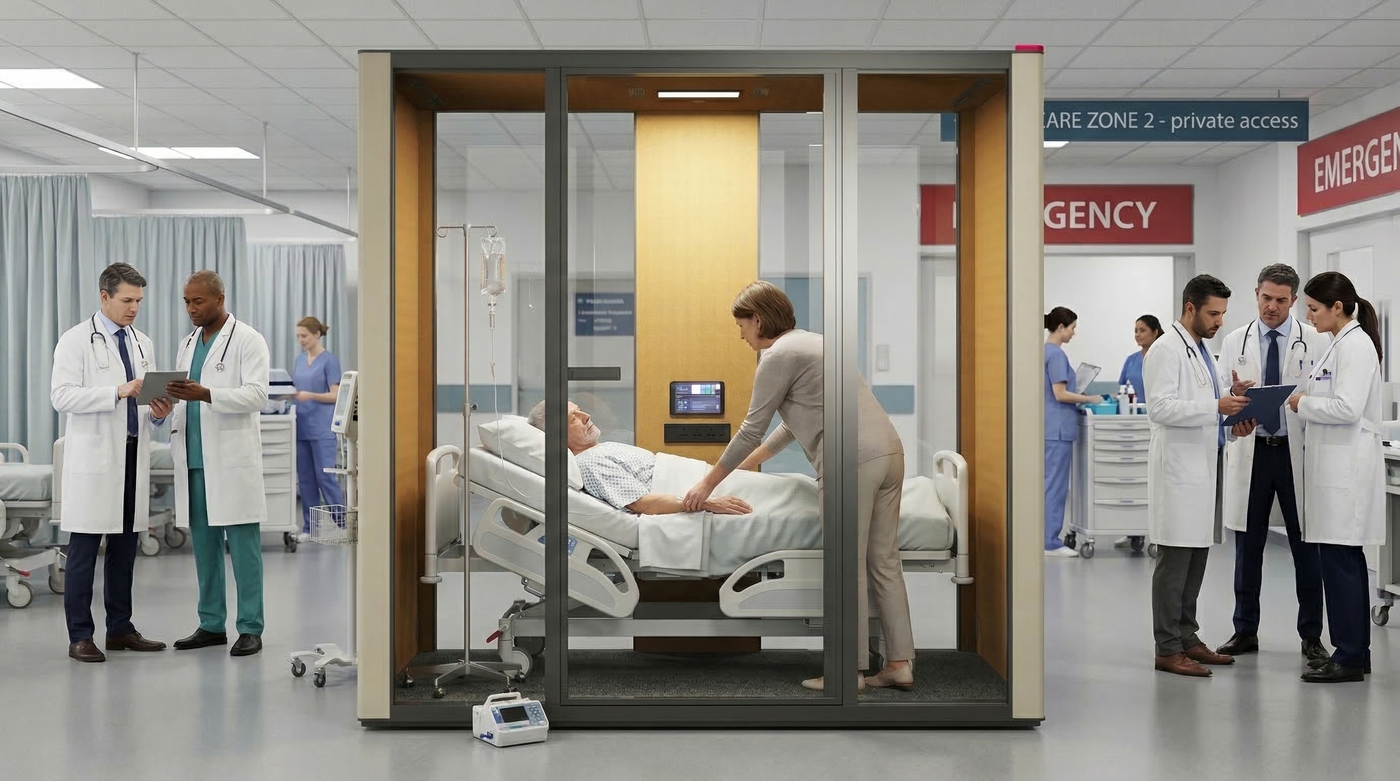

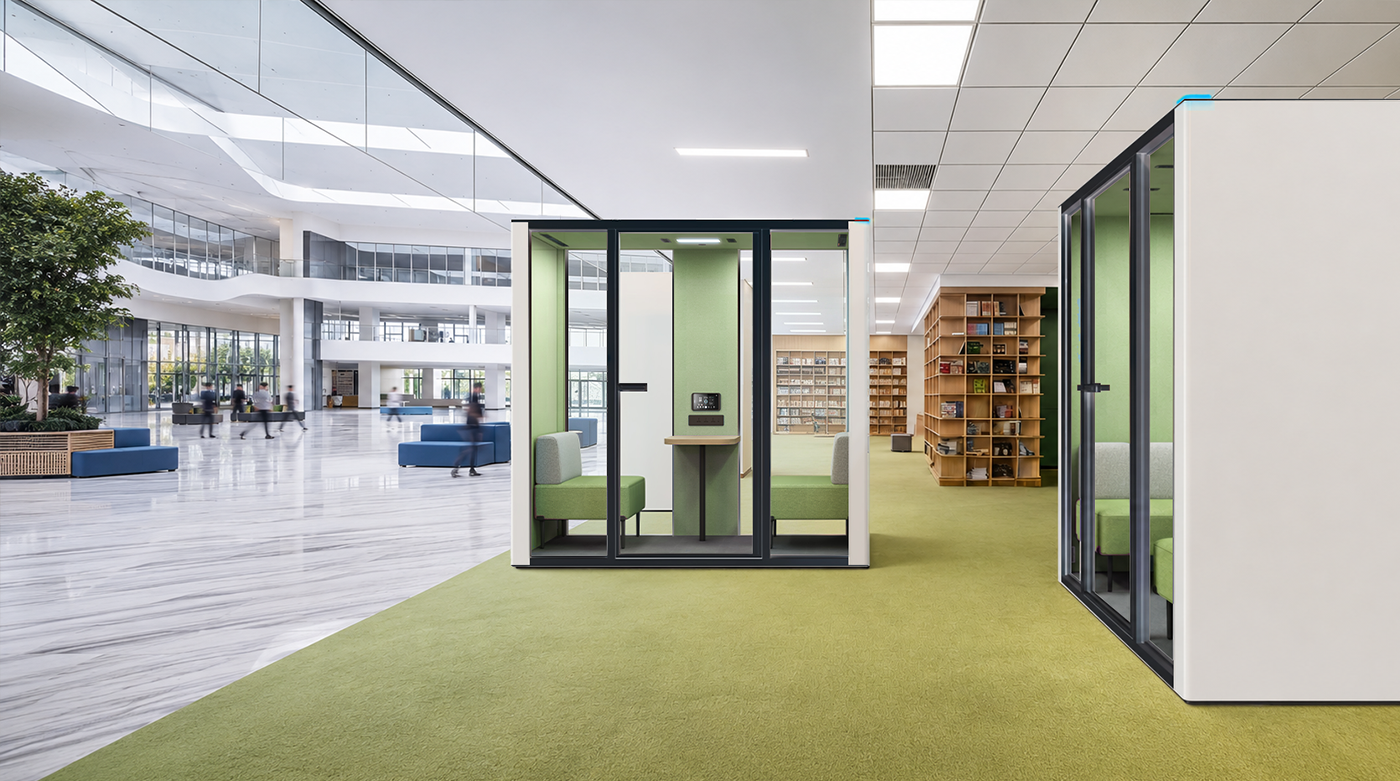

Quiet, private rooms for care, learning, travel, practice and content creation.
Modern technology

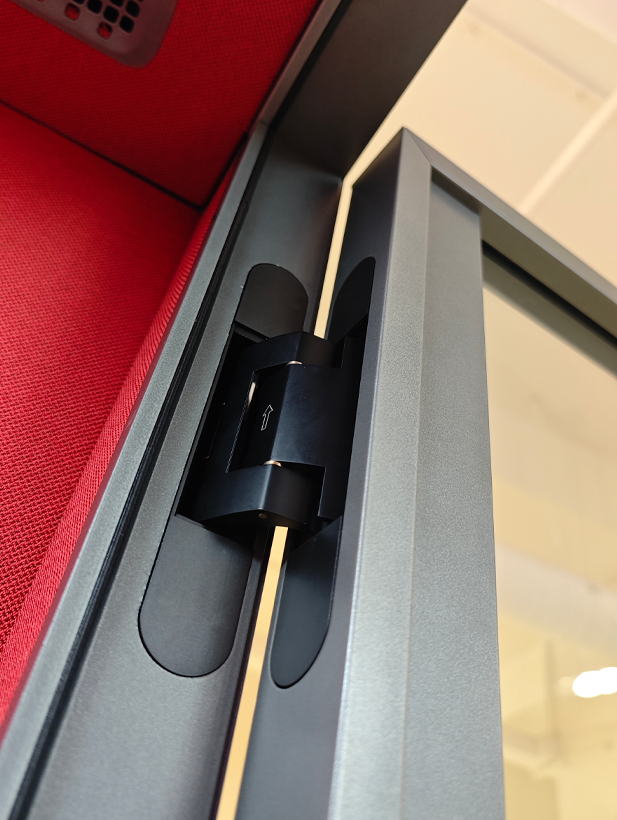

Precision components, environmental controls and a modular electrical system make ZOOM practical, durable and easy to service.
Technical specifications
ZOOM S1
Dimensions and performance
Exterior W×D×H1020 × 1064 × 2313 mm
Interior W×D×H900 × 900 × 2120 mm
Suitable for1 person
Air exchange time41 seconds
Cabin install time2 people, 30 minutes
Main controlManual knob
Fan configuration3 in
Power outlets3 universal + 1 USB + 1 × 20W Type-C

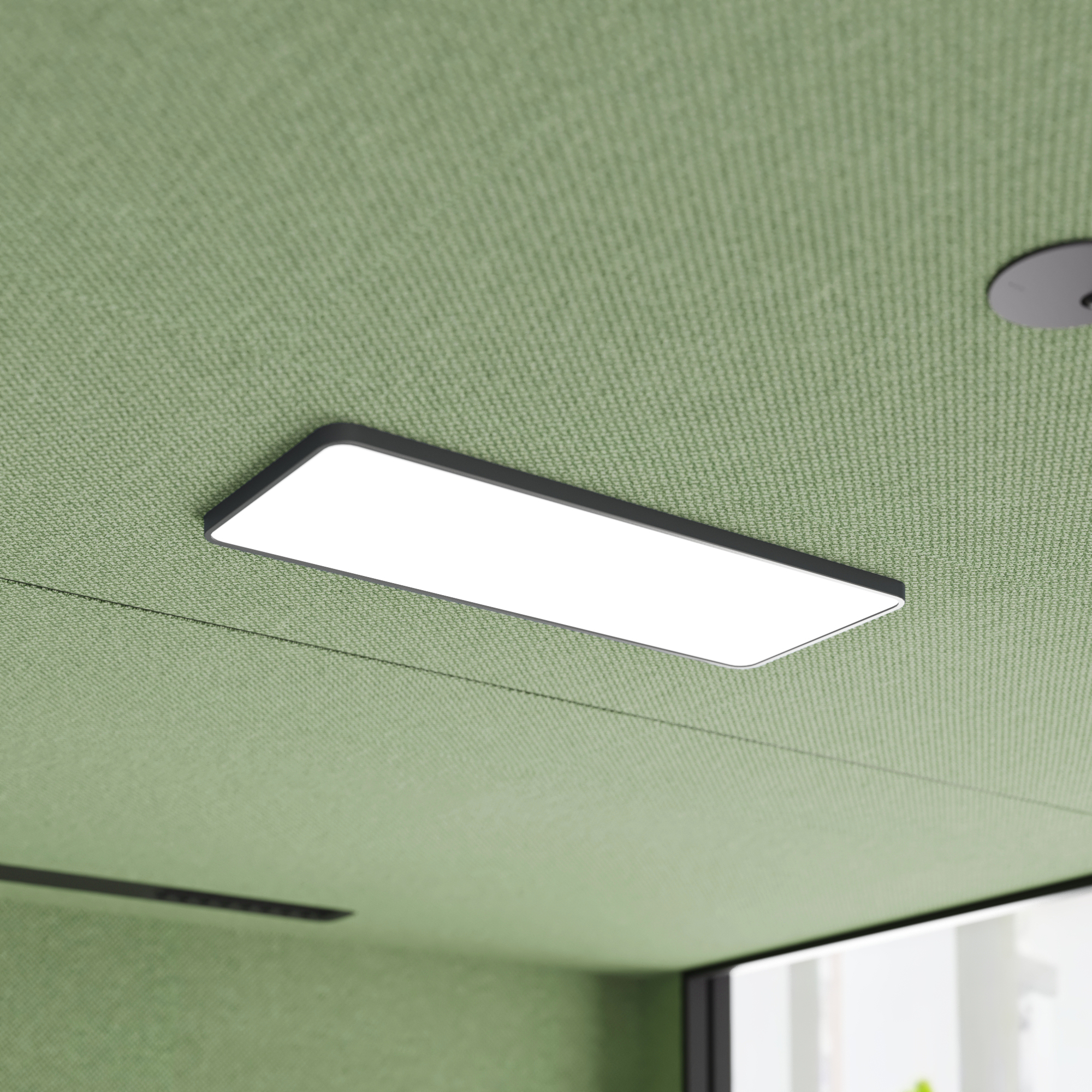

Lighting1 LED light
Cabin weight320 KG
Shipping and packaging
Shipping weight399 KG
Total package1 package / 1.656 CBM
Wooden crate with pallet2300 x 610 x 1180 mm
ZOOM M2
Dimensions and performance
Exterior W×D×H2320 × 1064 × 2313 mm
Interior W×D×H2200 × 900 × 2120 mm
Suitable for2 persons
Air exchange time84 seconds
Cabin install time3 people, 45 minutes
Main controlTouch screen
Fan configuration2 out, 2 in
Power outlets3 universal + 1 USB + 1 × 20W Type-C
Lighting1 LED light
Cabin weight577 KG
Shipping and packaging
Shipping weight665 KG
Total package2 packages / 2.393 CBM
Wooden crate with pallet2330 x 780 x 1180 mm
Base carton2320 x 1020 x 105 mm
ZOOM L4
Dimensions and performance
Exterior W×D×H2320 × 1524 × 2313 mm
Interior W×D×H2200 × 1360 × 2120 mm
Suitable for4 persons
Air exchange time100 seconds
Cabin install time3 people, 55 minutes
Main controlTouch screen
Fan configuration2 out, 4 in
Power outlets3 universal + 1 USB + 1 × 20W Type-C
Lighting2 LED lights
Cabin weight685 KG
Shipping and packaging
Shipping weight777.8 KG
Total package2 packages / 3.094 CBM
Wooden crate with pallet2290 x 1100 x 1085 mm
Base carton2320 x 1480 x 105 mm
ZOOM XL6
Dimensions and performance
Exterior W×D×H2320 × 2164 × 2313 mm
Interior W×D×H2200 × 2000 × 2120 mm
Suitable for6 persons
Air exchange time150 seconds
Cabin install time3 people, 65 minutes
Main controlTouch screen
Fan configuration2 out, 4 in
Power outlets3 universal + 1 USB + 1 × 20W Type-C
Lighting2 LED lights
Cabin weight820 KG
Shipping and packaging
Shipping weight923 KG
Total package3 packages / 3.859 CBM
Wooden crate with pallet2290 x 1150 x 1260 mm
Base carton x 22120 x 1215 x 105 mm each
Sustainability
Designed for the long run
Outer walls and shelves are specified in S53 white, S57 gray or S56 silver. At its core, ZOOM is built for long-term use and a circular material system.

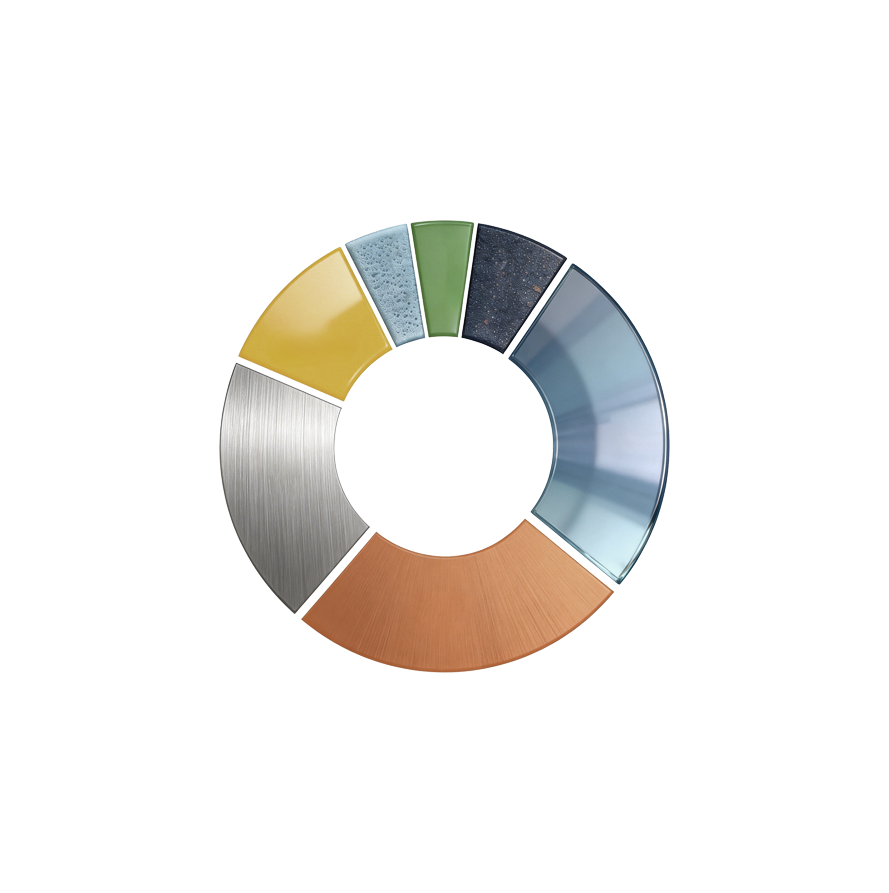

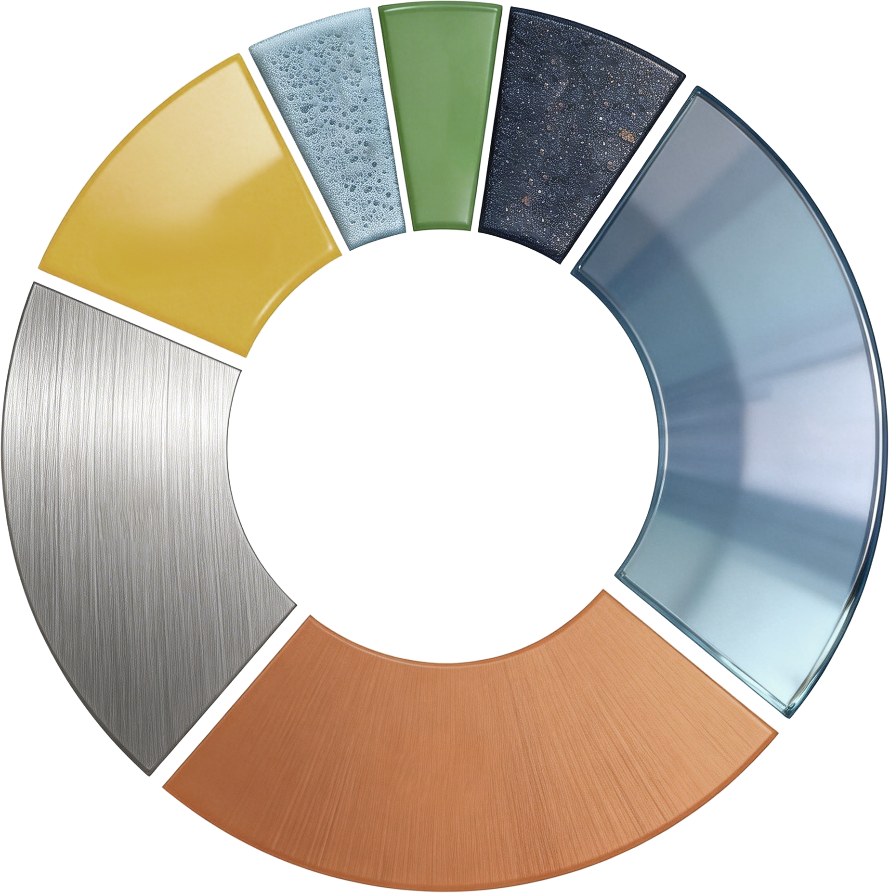

7 material classes
Glass 26% · 6063 Aluminum 25% · Steel 20% · PVC 11% · Sound-absorbing cotton 5% · Die-cast aluminum 5% · Other 7%. Distributed for strength, durability and recyclability.
Up to 98% recyclable
S1 and M2 reach 98% recyclable content by total weight; L4 and XL6 reach 92%. Almost all materials can re-enter the loop.

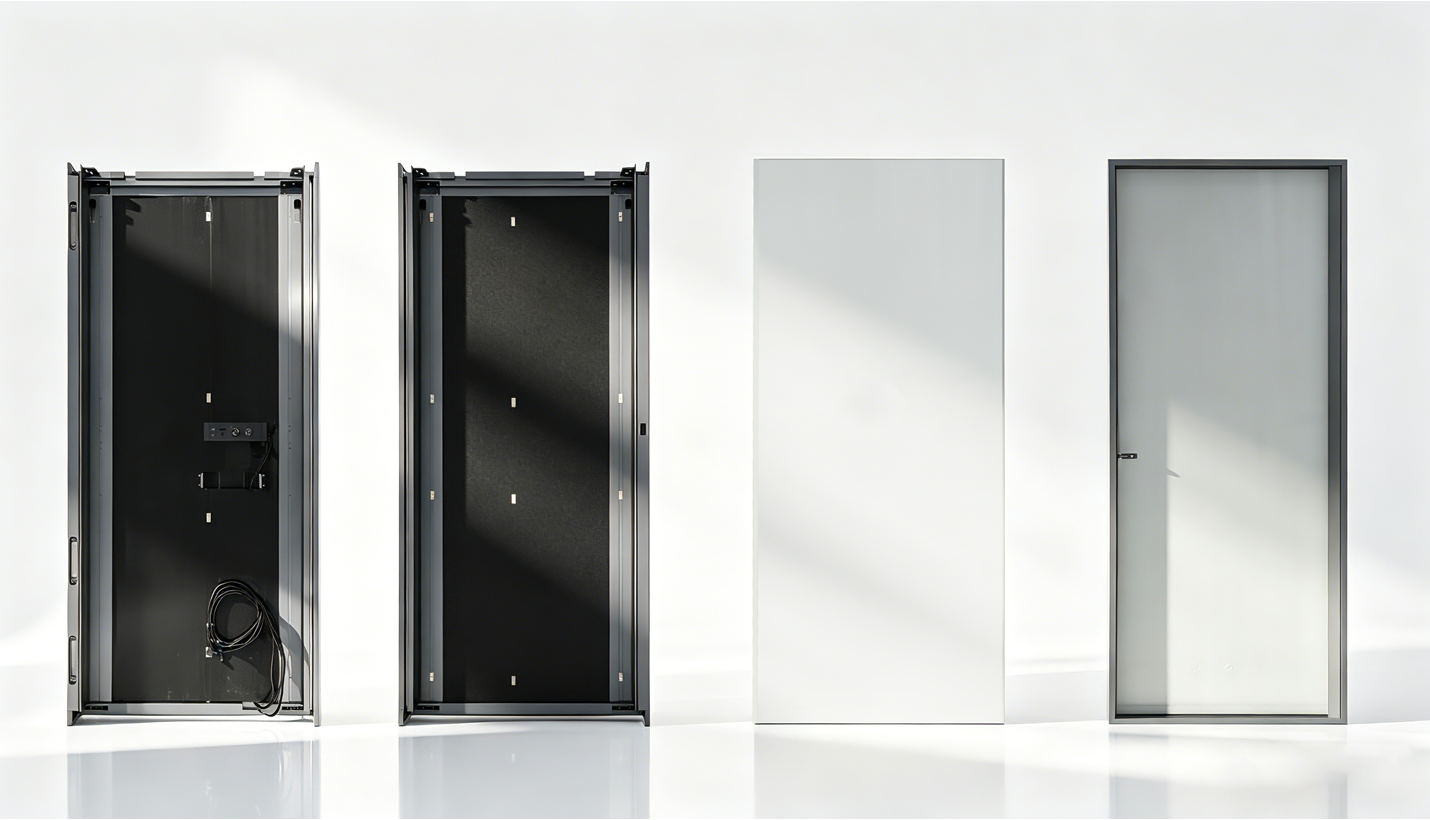

6063-T5 aluminum
The main load-bearing system, 25% of total weight. Light, strong and fully recyclable — ready for repeated assembly and transport.
FSC · SGS · CE · UL
Wood sourced under FSC® forest stewardship; the product is compliant with SGS, CE marking and UL listings.
VOC- and formaldehyde-free
Materials are specified as VOC- and formaldehyde-free, supporting long, comfortable sessions inside the cabin.

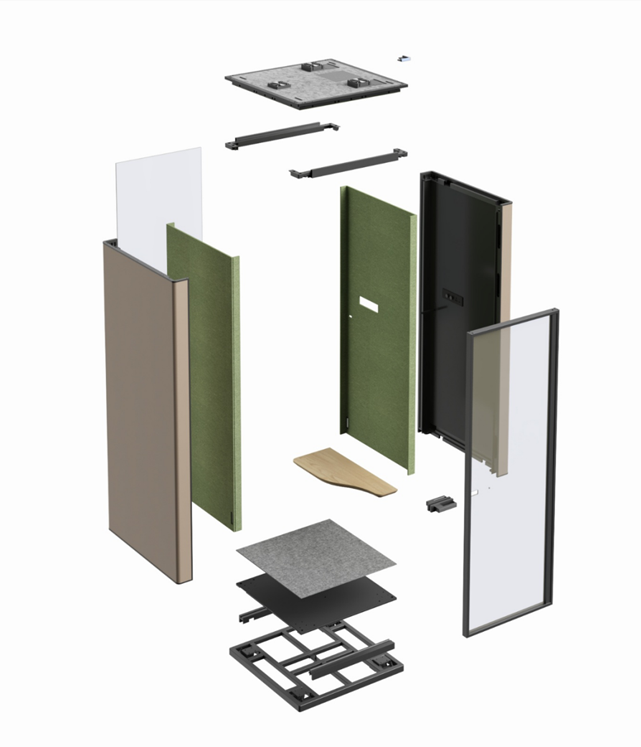

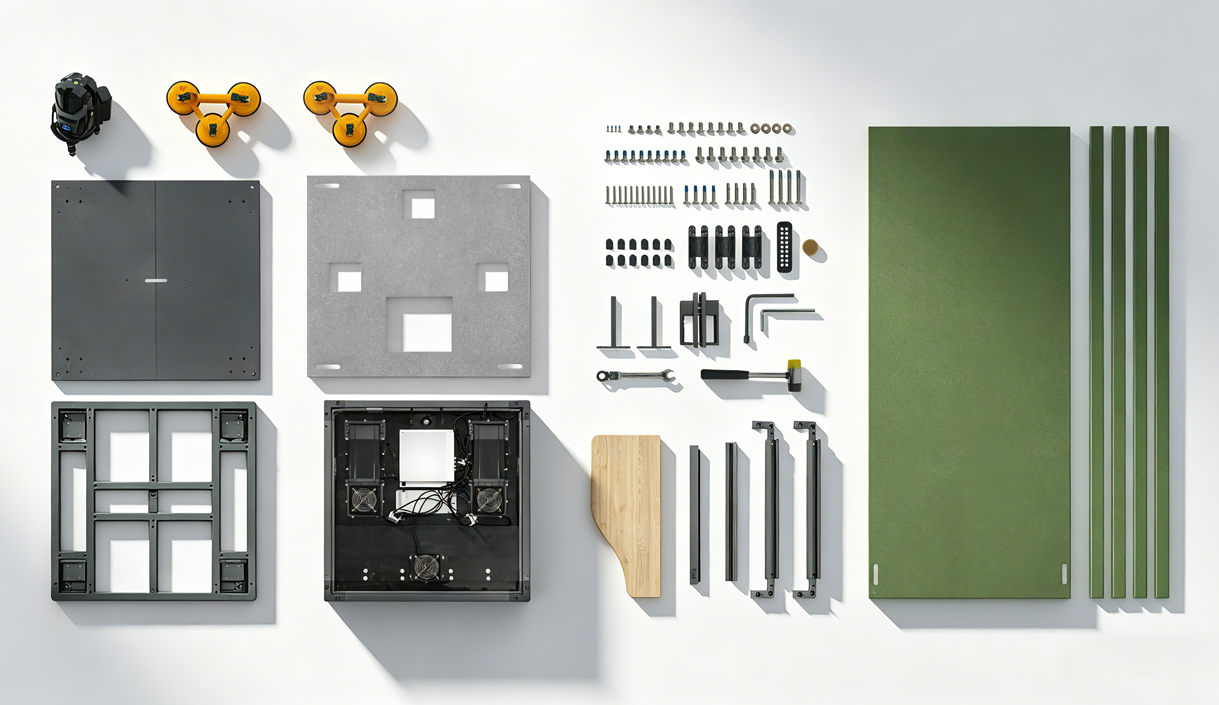

Seven modular components
Seven major modular components make transport, servicing, recycling and single-part replacement easier across the product life cycle.
